Description
The TLR 1/8 8IGHT-XT/XTE 1/8 Nitro/Electric 4WD Off-Road Truggy Kit builds on the championship-winning heritage of its predecessors with updates to the suspension geometry, drivetrain and chassis layout. This was done to make it easier to drive and tougher to beat! Plus, this kit includes the parts needed to build the truck in a Nitro or Electric configuration in the box!
The 8IGHT-XT/XTE has a combination of features second-to-none including large footprint engine mount, 3mm chassis, cab forward body, machined aluminum shock caps, and so much more. Designed to win straight out of the box, the 8IGHT-XT/XTE expands performance and is ready for the winner’s circle.

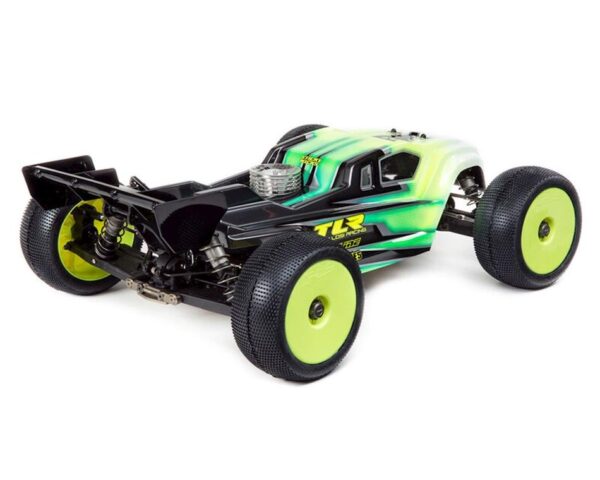

NOTE: Completed model shown for illustrative purposes only. See needed to complete list below for a listing of items required to complete the kit.
Features:
Nitro and Electric Parts Included

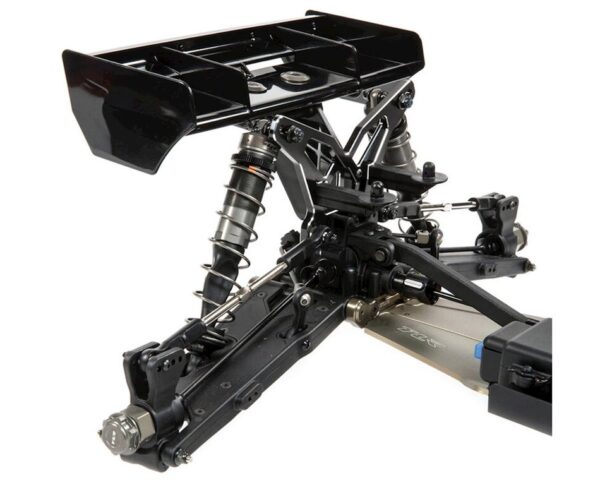

Improved Suspension Geometry
Flex Tune Suspension Arms
Wider 3mm Chassis
Larger Pinion Bearing
Cab Forward Style Body
Chassis Side Guards
Large Footprint Nitro Engine Mount
One Piece Electric Motor Mount
Adjustable Caster Blocks
Bleeder Shock Caps
Balanced Chassis
Ackerman Adjustable Draglink Steering Rack
Machined Aluminum Shock Towers
Better Diff Access
Sway Bar System
Equalized Driveline
Updated Radio Tray
Optimized Shocks
Ball Bearing Throttle and Brake Actuator
Large Bearing Spindles and Carriers
Shorter Wheelbase
LiPo/LiIon Compatible Battery Box
Specifications:
Approximate Assembly Time: Approximately 3-5 hours
Ball Bearings: Full set
Battery: Sold Separately
Body: Unpainted
Brakes: Ball bearing equipped brake actuator
Charger: Sold Separately
Chassis: 0.12″ (3mm ) 7075-T6 hard anodized aluminum
Completion Level: Kit
Differential: 3 sealed viscous filled gear diffs
Drivetrain: 4WD
Drive Type: Forward/Reverse
Engine Size: .21 cu in (3.4cc) sold separately
Final Drive Ratio: 16.6:1
Front Track: 15.8″ (402mm)
Fuel Tank Capacity: 5.1oz (150cc)
Power Type: Electric
Gear Pitch: 1.0 Mod
Gear Ratio: 4.5:1
Ground Clearance: 1.6″ (40mm)
Internal Gear Ratio: 4.5:1
Max Battery Dimensions: 5.4 x 1.8 x 1.5″ (138 x 47 x 40mm)
Motor Type: Brushless
Pinion: 13T
Product Height: 7.3″ (185 mm)
Product Length: 21.1″ (536 mm)
Product Weight: 9lbs (4082g)
Product Width: 16.6″ (422 mm)
Radio: Sold Separately
Rear Track: 15.8″ (402mm)
Receiver: Sold Separately
Scale: 1/8
Servos: Sold Separately
Shock Type: Aluminum body, oil-filled
Speed Control: Sold Separately
Spur Gear: 48T
Suspension: Independent
Track: 15.8″ (402mm) front and rear
Vehicle Type: Truggy
Water-Resistant: Yes
Wheelbase: 14.7″ (373mm)
Includes:
(1) TLR 8IGHT XT/XTE Nitro/Electric Truggy Race Kit
(1) Product Manual
Flex Tune Suspension Arms
Needed to Complete:
Nitro:
.21-.28 Size Nitro Engine
Tuned Exhaust System
Steering & Throttle Servo
Starter Box
Glow Igniter
Nitro Fuel
Fuel Bottle/Fuel Gun
Electric:
Motor
Electronic Speed Control
Steering Servo
4S Battery & Charger
Polycarbonate Paint
2-Channel Radio System
Receiver Battery Pack and Charger
1/8 Scale Off-Road Truggy Tires, Wheels, Inserts and CA Glue
Tools for Assembly
