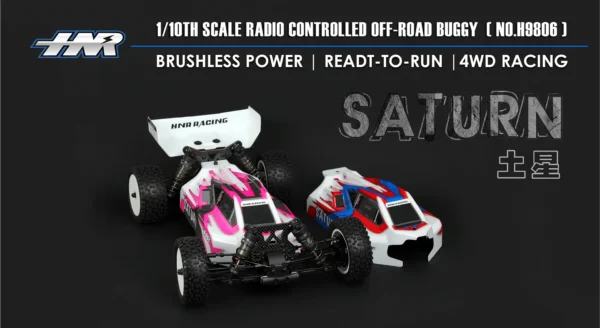

HNR H9806 SATURN 1/10 Scale 4WD Brushless Off-Road Racing RTR Buggy

Description

HNR’s new 1/10 high-performance brushless electric off-road vehicle, codenamed “SATURN.” It is meticulously crafted to meet the standards of professional off-road racing. It comes with a factory-installed remote control and a complete power system (excluding batteries and chargers). The body shell is available in two colors: pink and red-blue.

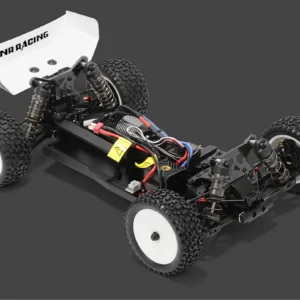

“Saturn” features a chassis made of 2.5mm thick 7075 aluminum alloy and a carbon fiber shock absorber frame. The entire vehicle is equipped with high-precision ball bearings. The transmission system employs a three-differential design in the front, middle, and rear, with standard anti-roll bars in the front and rear. The frame supports various professional parameter adjustments, making it easy to handle different terrain requirements. Additionally, it is equipped with a quick-release CNC aluminum motor mount, featuring a 3652-4000KV brushless motor and a Haoying 60A brushless electronic speed controller. It is compatible with 2-3S high-density lithium batteries.

Features :
– 7075 Aluminum Alloy Chassis – 2.5mm thick for exceptional strength and rigidity.
– Carbon Fiber Shock Towers – Reduce weight and enhance shock absorption.

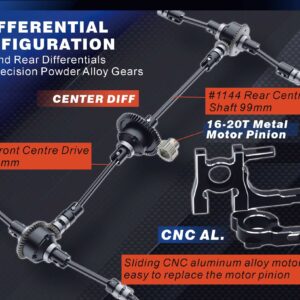

– Front, Center, and Rear Differential Design – Improves handling and power distribution.
– Adjustable Suspension Links – Fully tunable setup with anti-roll bars for different track conditions.
– CNC Aluminum Alloy Motor Mount – Sliding design for easy pinion gear replacement.
– CNC Aluminum Shock Absorbers – Hard anodized finish with large-capacity dampers for superior off-road control.
– Hobbywing WP-10BL60-RTR ESC – 60A waterproof ESC with 7.4V BEC output, multiple safety protections, and cooling fan.
– 3652/4000KV Brushless Motor – Provides strong torque, smooth linear power, and high efficiency.
– 9KG Digital Metal Gear Servo – Fast, precise steering with splash-proof aluminum case.
– #1144 Material CVD Shafts – Maintain superior power transmission and durability.

Basic information
– Brand : HNR
– Item No : H9806 SATURN
– Scale : 1/10
– Color : Blue/pink/kit
– Design Speed : 2s 40mph(65km/h+),3s 55mph(90km/h+)

Power System
– ESC : Hobbywing 60A WP-10BL60-RTR brushless esc
– Motor : HNR 3652SL 4000kv brushless motor
– Servo : 9kg digital metal gear splashproof steering servo

Transmitter
– Frequency : 2.4G
– Channel : 4CH
– Remote Distance : ≦200m
– Required Battery : 4X 1.5V AA battery(not included)

Battery
– Not Included
– Recommended Battery : 2-3s Lipo battery(not included),such as 7.4v 3500mAh Lipo

Others
– Material : Plastic,hardware,steel and rubber
– Car Weight : About 1600g(without battery)
– Gear Ratio : 8.7:1
– Number of Differentials : With center diff. design, 3P
– Body Shell Type : PC printed body

Dimension
– Car Size : 385*250*146mm
– Wheelbase : 285mm
– Ground Clearance : 20-25mm
– Wheel(Diameter/Width) : 85*32mm(F),88*40mm(R)
– Battery Compartment Size : – Box Size : 540*275*165mm

Package Included :
1x RC Car(do not have battery and charger)
1x Remote Controller
1x Instruction Manual
