In The Box
- (1) 1/8 TLR Tuned TYPHON 6S 4WD BLX Buggy RTR
- (1) Spektrum Firma 150A Smart Waterproof ESC
- (1) Spektrum Firma 4074 2050Kv Brushless Motor
- (1) Spektrum 2.4GHz SLT3 3-Channel Transmitter
- (1) Spektrum SR315 3-Channel Dual Protocol Receiver
- (1) Spektrum SPMS652 Waterproof Metal-Geared Digital Servo
- (4) AA Batteries for the Transmitter
- (1) Product Manual
Needed to Complete
- (1) 4S or 6S LiPo Battery with EC5 or IC5 Connector
- (1) LiPo Battery Charger
- The ultimate 1/8 scale ARRMA buggy out of the box, with many laser-etched TLR Tuned parts.
- Ready for racing or bashing with factory-installed Spektrum electronics.
- Standout ARRMA body with an exclusive paint scheme of Race Spec colors.
- Powerful 4S and 6S LiPo capable Spektrum brushless power system.
- Spektrum SLT3 3-channel 2.4GHz radio and SR315 dual protocol receiver.
- Spektrum S652 steel gear waterproof digital servo with 265 oz-in of torque @ 7.4V.
- TLR Tuned 7075-T6 aluminum parts — chassis, shock towers, and steering rack.
- TLR Tuned adjustable suspension hangers.
- TLR Tuned black TLR branded shocks with machined tapered shock pistons, machined shock guides and X-ring Seals, attached to the shock towers with EXB shock standoffs.
- Black-anodized aluminum motor mount, servo mount, and 17mm wheel hexes.
- Race Spec tunable rear wing mounted on a high rear wing mount.
- Race compound dBoots EXABYTE tires.
Fully assembled and factory-equipped for bashing or racing!
Loaded with high-end parts for improved strength, handling, and long-term durability, the 1/8 scale ARRMA TLR Tuned TYPHON 4WD Race Buggy gives bashers the perfect platform for entering competitive racing. It has the chassis tuning capabilities of a race spec buggy and arrives ready-to-run, with proven Spektrum radio and brushless power systems installed. The TLR Tuned TYPHON 4WD Race Buggy RTR comes prepared to hit the racetrack or the bash spot — you decide which! With its powerful 4S and 6S LiPo capable Spektrum brushless power system, the TLR Tuned TYPHON blasts over rough terrain with ease. On 4S, you can compete at your local racetrack. With the additional power of a 6S LiPo, the TLR Tuned TYPHON performs stunts and tackles big jumps at your favorite off-road bash location. The buggy’s durable TLR Tuned 7075-T6 aluminum upgrades include the chassis plate, steering rack, adjustable upper and lower suspension hangers, shock bodies, and front and rear shock towers. All are laser-etched with the TLR Tuned logo. The oil-filled, adjustable shocks have machined tapered pistons, machined shock guides, and X-ring seals, and are attached to the shock towers with Extreme Bash (EXB) stand-offs. The TLR Tuned TYPHON 4WD Race Buggy also features a heavy-duty drivetrain that holds up to extreme bashing and high-speed racing, with all-metal diff outdrives and gearbox internals plus durable steel driveshafts throughout. Its extra-strong wheel hubs support low-drag wheels on which ARRMA engineers have mounted multi-terrain, race compound dBoots EXABYTE tires for next-level grip. A Race Spec tunable rear wing helps to keep the tires and buggy grounded, contributing to confident control and responsive handling at high speeds. Maintenance downtime is kept to the minimum with an efficient, driver-friendly design. For example, an aluminum sliding mount gives you fast, hassle-free access to the factory-installed Spektrum Firma 4074 2050Kv brushless motor. Topping off the 1/8 scale TLR Tuned TYPHON 4WD Race Buggy RTR is a standout body finished in an exclusive paint scheme of Race Spec colors plus decals. It’s the ultimate ARRMA buggy for intermediate-level bashers with an eye towards racing.
Under The Hood
SPEKTRUM 6S CAPABLE BRUSHLESS POWER SYSTEM
The included Spektrum Firma 2050Kv brushless motor and Firma 150A Smart ESC together provide the perfect power system for use with 4S or 6S LiPo batteries. On 4S you can compete at your local racetrack. The additional power supplied by a 6S LiPo supports big jumps and stunts at your local bash spot.
The Firma 2050Kv brushless motor arrives factory-installed on a black-anodized aluminum sliding motor mount for durability and fast, hassle-free access. The servo mount and 17mm wheel hexes are also constructed of aluminum for bash-ready strength.
SPEKTRUM SLT3 2.4GHz 3-CHANNEL RADIO
The included Spektrum SLT3 transmitter is ergonomically designed for fatigue-free driving and has a foam wheel for precise fingertip control. Throttle limits can be set at 50% or 75% until you’re ready to use the full speed potential. Compatible with SLT and DSMR protocols, the SR315 3-channel receiver offers outstanding range and fast response rate. For dependable steering control, ARRMA includes a Spektrum S652 metal-gear digital servo capable of 265 oz-in of torque.
TLR TUNED 7075-T6 ALUMINUM PARTS
The TLR Tuned TYPHON 4WD Race Buggy RTR features many high-end aluminum parts that increase durability and improve handling. For intermediate-level bashers, it’s the perfect platform to use for racing and to gain experience with tuning — Designed Faster and Tougher!
TLR TUNED ADJUSTABLE SUSPENSION HANGERS
Laser-etched with the TLR Tuned logo, the TLR Tuned aluminum lower and upper suspension hangers have many different inserts included in the box that you can swap out to tune your buggy for the best performance in a variety of driving conditions.

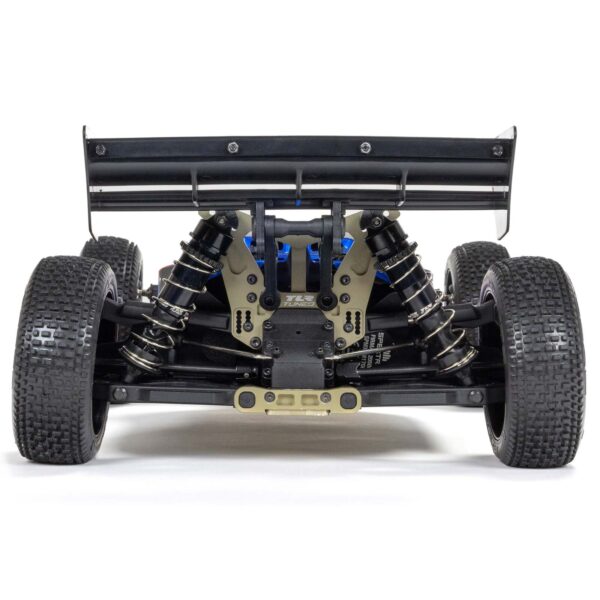

The adjustable oil-filled shocks are mounted on TLR Tuned 7075-T6 Aluminum Shock Towers and feature TLR Tuned Aluminum Shock bodies, machined tapered shock pistons, and EXB Extreme Bash shock stand-offs. They easily soak-up bumps over dirt, asphalt, and grass for super-smooth damping.
RACE SPEC FINISHED BODY

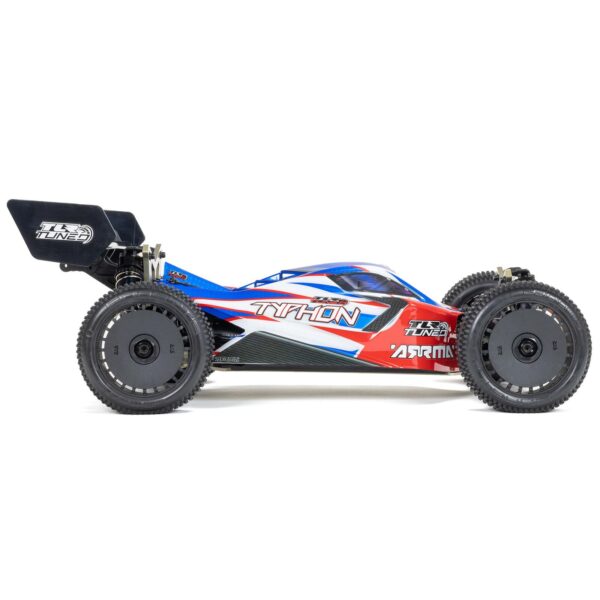

Topping off the TLR Tuned TYPHON 4WD Race Buggy RTR is a sleek body that’s factory-finished with exclusive Race Spec colors and decals, distinguishing it from the roller version TLR Tuned TYPHON. A low-drag, tunable rear wing helps keep the buggy grounded, contributing to confident control and responsive handling at thrilling high speeds.
HIGH-TRACTION dBOOTS EXABYTE TIRES
The dBoots EXABYTE tires are made of high-quality, race compound rubber for long-lasting durability. Their multi-surface tread pattern provides excellent traction in all conditions. The tires include foam inserts and are pre-glued to low-drag, 1/8 buggy nylon wheels. The industry standard 17mm hex fitting adds strength for extreme action and allows easy maintenance plus a wide range of tuning options.
|Final Drive Ratio
|12.28 in (312mm)
|12.91″ (328 mm)
|20.27″ (515 mm)
|Rubber shielded bearings throughout
|3 Gear Diffs
|Aluminum, Oil-Filled, Coil-Over Springs
|Painted, decalled and trimmed
|Integral with ESC
|1.63 in (41.5mm)
|12.28 in (312mm)
|Inner Tire / Outer Wheel Diameter
|12.28″ (312 mm)
|7.44″ (189 mm)
|Wheel Hex Size
|3mm Plate, 7075-T6 Aluminum
